VOCs & Odor Removal
Adsorbs benzene, toluene, TVOC, and odors from wastewater, kitchens, and waste stations with low resistance and high airflow.
HONEYCOMB BLOCK

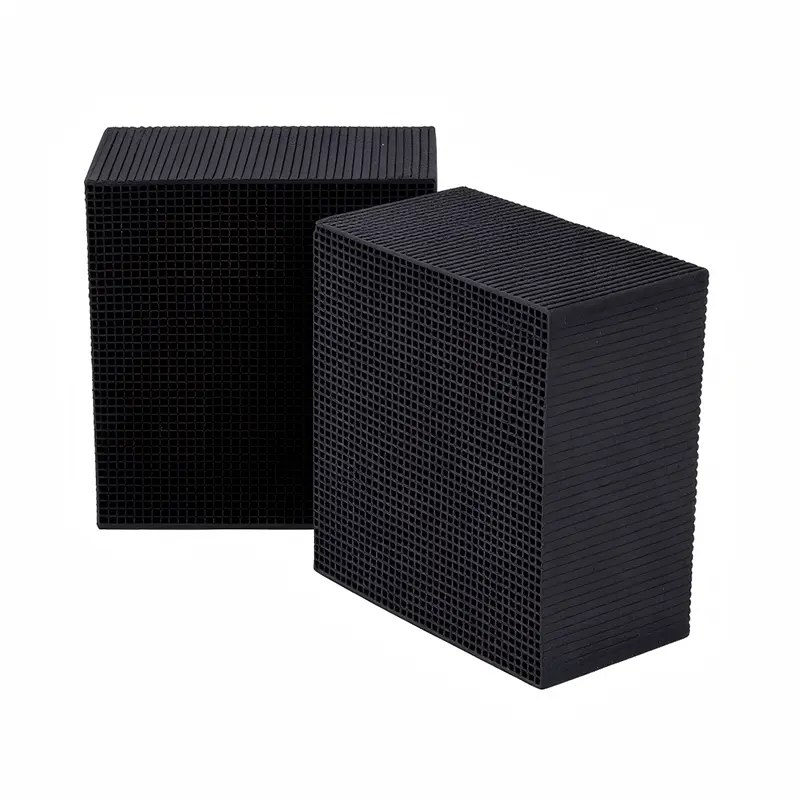

Honeycomb Activated Carbon
Rigid monolithic carbon block with low pressure drop for large-volume VOCs waste gas treatment.
Industrial Air Purification
Painting Exhaust Gas
VOCs & Odor Removal
Product overview
Designed around your operating conditions.
Honeycomb Activated Carbon is supplied for industrial VOCs and waste gas purification duties where the carbon shape, pore profile and mechanical properties must fit the treatment system. We can discuss grade selection against your target contaminant and test method.
- High compression strength, not easy to break
- Low wind resistance for large air volume treatment
- Customizable cell size, dimensions and adsorption activity
| Property | Supply basis |
|---|---|
| Raw material | Coal feedstock |
| Physical form | Honeycomb block |
| Iodine value | Customizable / 200–900 mg/g |
| Particle size | Customizable dimensions (100×100×100mm / 100×100×50mm) |
| Moisture and ash | ≤5 / ≤25% |
| Mechanical strength | Longitudinal ≥0.8 MPa, transverse ≥0.3 MPa. Poor strength causes breakage during shipment. |
| CTC adsorption capacity | 55–65% |
| Benzene adsorption capacity | 37–52% |
| Specific surface area | ≥1050 m²/g |
| Packing | Carton packaging; custom packing available |
Typical uses
Where this product fits.
Final suitability depends on the actual stream, equipment and required outlet specification. Samples are available for evaluation.
Painting Exhaust Gas
Captures paint mist and benzene-series solvents from spray booths and coating lines; resists clogging better than granular carbon.
Industrial Air Purification
Removes airborne contaminants and odors in electronics, pharma, and food cleanrooms; customizable iodine value 200–900 mg/g.
Related products
Compare adjacent options.
Tell us what you need to remove.
Share your process, target contaminant, volume, and required carbon form.
